• 9514-48 = 48" (1219mm)
• 9514-60 = 60" (1524mm)
• 9514-72 = 72" (1829mm)
• 9514-96 = 96" (2438mm)

9514-48 for two 24" (610 mm) doors

ANSI A156.14 Type D8742

Contents: 9810 track, 9814 parts bag. Refer to side mount selection chart for combination of hangers.

3/4" - 1-3/8"

• Track Notes:
• 1-1/16" (27 mm) x 3-1/8" (79 mm)
• Track mounting screws, 1-1/4" (32 mm), packaged in parts bag
• 5/8" (16 mm) packaged with bulk hangers
• Up to 60 lbs (27 kg) per door with single wheel hangers 9400 or 9401
• Up to 75 lbs

• 9514-48: 48" (1219mm) for two 24" (610mm) doors
• 9514-60: 60" (1524mm) for two 30" (762mm) doors
• 9514-72: 72" (1829mm) for two 36" (914mm) doors
• 9514-96: 96" (2438mm) for two 48" (1219mm) doors

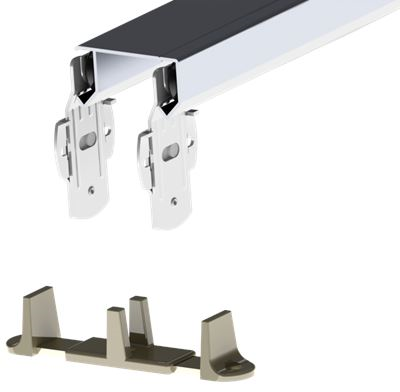

Aluminum Track and Hardware
