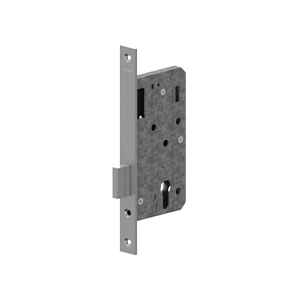

    3800U-55F

    3800U-55F
    Contact Hager for Price

    Specifications

    Backsets
    55mm
    Box Quantity
    1
    Case Quantity
    20
    Certifications
    • EN 12209:2003 / EN1634-1:2000 (4 Hour Fire Rated)
    • CE Classificaiton 3X510F3BC00
    • CertiFire CF5283
    Deadbolt Throw
    20mm
    Faceplate Height
    235mm
    Faceplate Width
    24mm
    Fasteners
    • Two (2) 4mm x 25mm FPHWS
    • Two (2) 3.5mm x 20mm FPHWS
    Finishes
    US32D
    Functions
    Double Deadbolt. Privacy Deadbolt. Single Deadbolt
    Includes
    Mortise lock body, strike plate, and fixing screws
    Material
    Stainless Steel Latch, Deadbolt and Faceplate
    Notes
    • Hager Euroline products are not ANSI certified.
    • Cylinders and levers sold separately.
    • Field reversible, non-handed.
    Product Description
    Deadbolt Mortise Lock
    Strike Height
    90mm
    Strike Width
    24mm
    Warranty
    Three-year

    Template Files

      Name Download File type
    		3800U Series Template LH-RHR - T-LS01223.pdf 486 KB
    		.pdf
    		3800U Series Template RH-LHR - T-LS01224.pdf 490 KB
    		.pdf

    Instructions

      Name Download File type
    		3800U Series Installation Instructions i-ls01225-installation.pdf 262 KB
    		.pdf

    Related Files

      Name Download File type
    		3800-55L EN Certification - Hager_144028_Issue5.pdf 85 KB
    		.pdf
    		3800U-55F Certification ce_cert_ag0242_38-related_files.pdf 307 KB
    		.pdf
    		3800U-55F Dimensions and Exploded View s-ls01032.pdf 115 KB
    		.pdf
