    3800U-55T

    3800U-55T
    Contact Hager for Price

    Specifications

    Backsets
    55mm
    Box Quantity
    1
    Case Quantity
    20
    Certifications
    • EN 12209:2003 / EN1634-1:2000 (4 Hour Fire Rated)
    • CE Classification 3X510F2BB20
    • CertiFire CF5283
    CTC
    72mm
    Faceplate Height
    235mm
    Faceplate Width
    24mm
    Fasteners
    • Two (2) 4mm x 25mm FPHWS
    • Two (2) 3.5mm x 20mm FPHWS
    Finishes
    US32D
    Functions
    Security Storeroom. Security Institutional.
    Includes
    Mortise lock body, strike plate and fixing screws.
    Latchbolt Throw
    12.5mm
    Material
    Stainless Steel Latch, Deadbolt and Faceplate.
    Notes
    • Hager Euroline products are not ANSI certified.
    • Cylinders and levers sold separately.
    • Field reversible, non-handed.
    • To be used with half spindle (2-669-0732); sold separately.
    Product Description

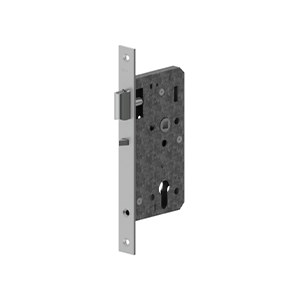

    Night Latch w/ Anti-Thrust Bolt Mortise Lock
    Strike Height
    102mm
    Strike Width
    24mm w/Out Lip. 39mm w/ Lip.
    Warranty
    Three-year

    Template Files

      Name Download File type
    		3800U Series Template LH-RHR - T-LS01223.pdf 486 KB
    		.pdf
    		3800U Series Template RH-LHR - T-LS01224.pdf 490 KB
    		.pdf

    Instructions

      Name Download File type
    		3800U Series Installation Instructions i-ls01225-installation.pdf 262 KB
    		.pdf

    Related Files

      Name Download File type
    		3800-55L EN Certification - Hager_144028_Issue5.pdf 85 KB
    		.pdf
    		3800U-55T Dimensions and Exploded View s-ls01038.pdf 121 KB
    		.pdf
    		3800U-55T Certification ce_cert_ag0245-related_files.pdf 306 KB
    		.pdf
